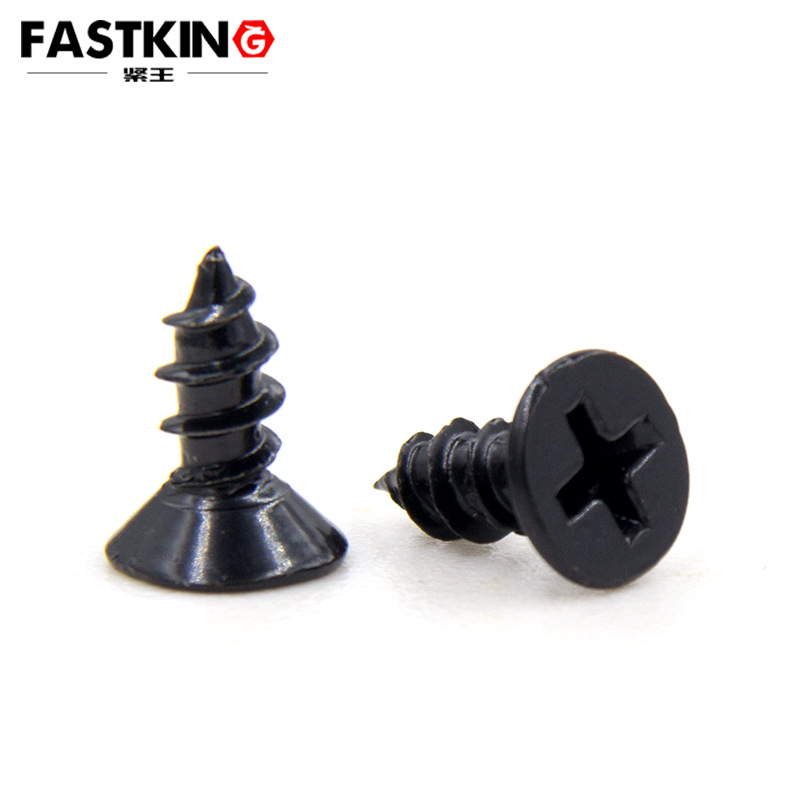

I. Electrophoretic Black: The Protective Armor Beyond Aesthetics

"Electrophoretic black" represents the essence of this screw's surface treatment. Electrophoresis is a coating technology similar to electroplating but more advanced. Its principle involves the uniform deposition of charged coating particles (typically epoxy or acrylic resin) onto the screw surface, which acts as an electrode, under the influence of an electric field, forming an extremely dense and uniformly thick coating.

This process delivers two core advantages:

1. Complete, Void-Free Coverage: As the deposition occurs at an ionic level within an electric field, the electrophoretic paint perfectly envelops every corner of the screw, including the complex curves of the thread roots and the head-to-shank junction. This is a level of coverage difficult to achieve with traditional spraying or even some electroplating processes, ensuring comprehensive protection.

2. Exceptional Corrosion Resistance: This polymer coating effectively isolates the screw substrate (typically steel, iron, or stainless steel) from external corrosive agents such as moisture, oxygen, and salts. The "black" color is not only a沉稳 (composed) and professional visual choice but also often indicates the addition of special anti-rust pigments to the coating, further enhancing its corrosion resistance. Screws treated with electrophoresis can typically withstand dozens to hundreds of hours of neutral salt spray testing, making them suitable for indoor humid environments and even partially harsh outdoor conditions.

Therefore, "electrophoretic black" bestows upon the screw not just a沉稳, professional, and modern "black garment," but also a sturdy and durable "suit of armor," significantly extending its service life in complex environments.

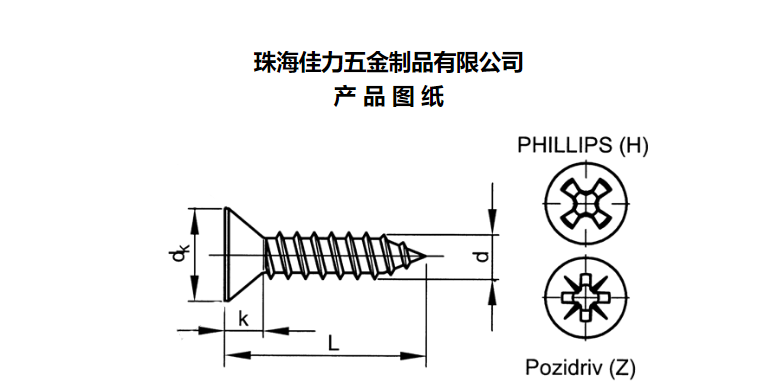

II. Countersunk Head and Phillips Drive: Streamlined Assembly and a Neat Appearance

The "Countersunk Head" design embodies the pursuit of ultimate product aesthetic integrity and safety. Once installed, the head of a countersunk screw can be fully recessed into a pre-drilled conical hole in the workpiece, allowing the screw's surface to sit flush with the workpiece surface, creating a smooth, flat plane.

This design offers multiple benefits:

• Aesthetic Cleanliness: It avoids protruding screw heads disrupting the smooth lines of the product surface, widely used in applications with high aesthetic demands, such as home appliance panels, furniture, and digital products.

• High Safety: The absence of protruding structures prevents snagging on clothing or cables, avoiding the risk of accidental scratches.

• Ease of Cleaning: The flat surface does not easily accumulate dust and grime, facilitating maintenance and cleaning.

The "Phillips Drive" is one of the optimal choices for drive systems. Compared to the traditional slotted drive, the Phillips drive offers significant advantages:

• Excellent Self-Centering: The screwdriver bit automatically centers itself in the drive, reducing cam-out and starting errors.

• High Torque Transmission Efficiency: It allows for the application of higher tightening torque, especially suitable for self-tapping screws that require significant force to cut into materials.

• Facilitation of Automated Assembly: It is highly suitable for the high-speed, continuous operation of electric screwdrivers and pneumatic tools, making it a standard configuration in modern automated production lines.

The combination of the countersunk head and Phillips drive signifies an efficient and precise installation process, resulting in a tidy and safe final assembly.

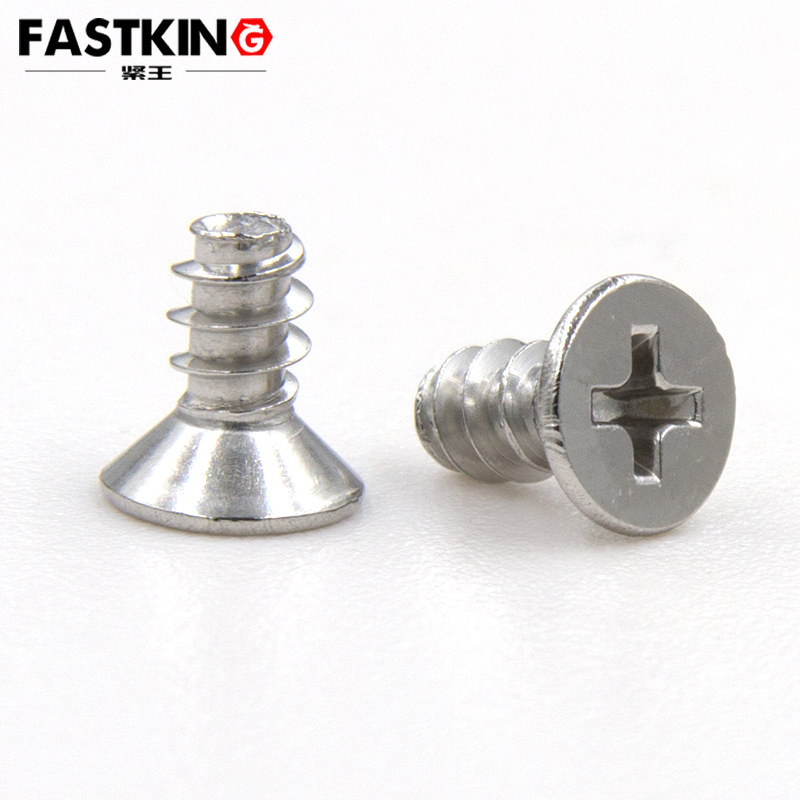

III. Self-Tapping: The Pioneering Force that Simplifies Processes

"Self-Tapping" is the core functionality of this screw. It means that when the screw is driven in, there is no need to pre-cut matching internal threads in the base material. Instead, relying on its own hard material and special thread design, it "extrudes" or "cuts" the corresponding threads into a pre-formed (or sometimes non-pre-formed) pilot hole.

This is primarily thanks to two key technical features:

1. Hard Material: Self-tapping screws are typically made from carbon steel or alloy steel and undergo heat treatment processes like quenching, giving them a surface hardness far superior to the materials being joined (such as plastic, aluminum profiles, thin steel sheets, wood), thus enabling the "tapping" capability.

2. Special Thread Design: Their threads may feature sharper cutting edges, a wider pitch, and/or greater thread depth to facilitate chip removal and form a strong threaded connection.

The self-tapping function greatly simplifies the assembly process by eliminating the need for pre-tapping operations, thereby improving production efficiency and reducing overall costs. It transforms the screw itself into a multi-functional fastening unit that integrates "drilling" (for some self-drilling taps), tapping, and fastening into one.

IV. Overall Synergy and Wide-Ranging Application Scenarios

When the protection of electrophoretic black, the flush finish of the countersunk head, the efficiency of the Phillips drive, and the convenience of self-tapping are integrated, this widely applicable industrial star is born.

Its typical application areas include:

• Home Appliance Manufacturing: Fastening sheet metal casings and internal structural components of products like refrigerators, washing machines, air conditioners, and microwaves. The elegant appearance of electrophoretic black complements appliance panels well, while its corrosion resistance handles internal humid environments like condensation.

• Electronics and Information Industry: Computer cases, servers, communication equipment cabinets, etc. The countersunk design ensures smooth internal and external surfaces of the chassis, preventing scratches and aiding electromagnetic shielding; the self-tapping function allows for quick and reliable connections in thin steel sheets.

• Automotive Components and Interiors: Used for securing interior trim panels, wire harness clips, light housings, and other non-critical structural parts. Their corrosion resistance and vibration resistance meet the requirements of the automotive interior environment.

• Office Furniture and Metal Display Racks: Widely used in the assembly of filing cabinets, office partitions, shelving, and display racks. The professional appearance of electrophoretic black resists wear and tear from daily use and contact with hand moisture.

• Outdoor Facilities and Construction Sector: Such as the installation of outdoor lighting, mailboxes, and lightweight metal fences. High-quality electrophoretic black coating effectively resists rain and atmospheric corrosion, ensuring long-term connection reliability.

• Plastic and Wood Connections: In plastic housing assembly or wood-to-metal connections, the self-tapping capability makes it the preferred choice, capable of forming a powerful grip.
