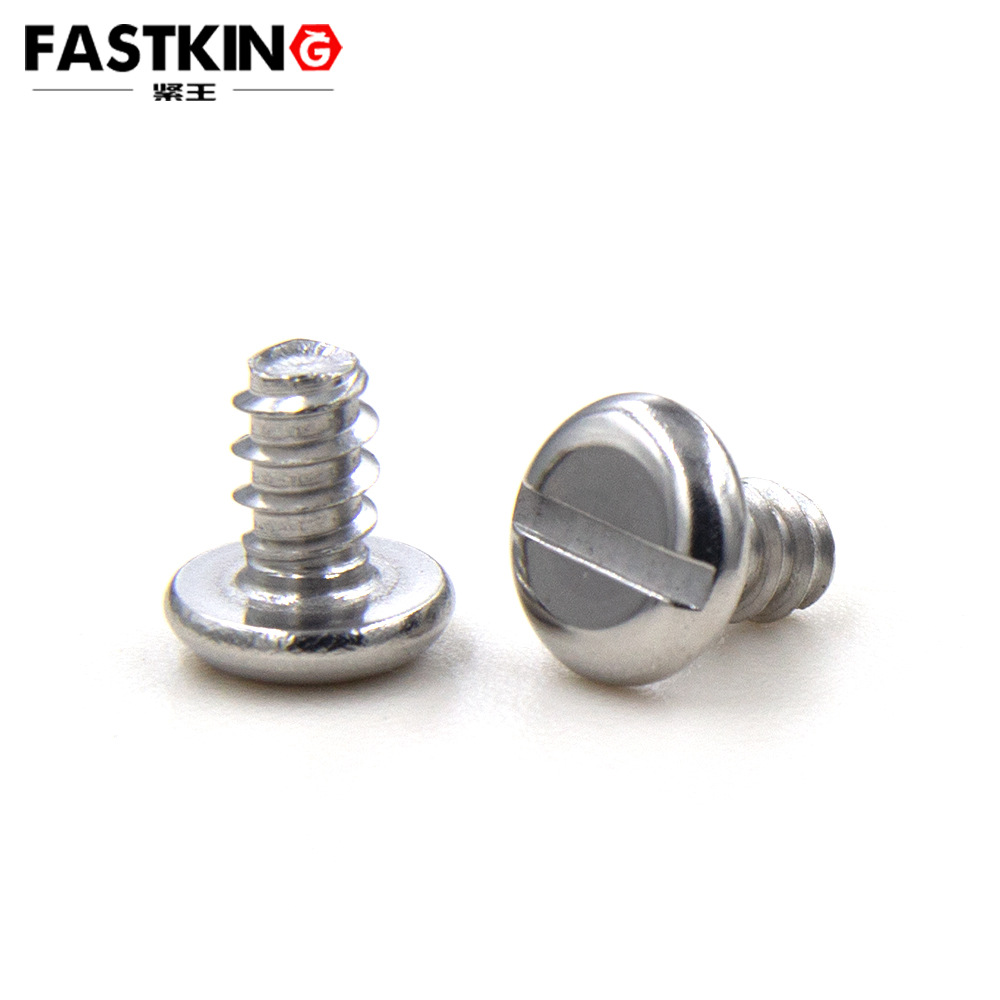

The Rounded Head: A Blend of Practicality and User-Friendliness

The first feature that catches the eye is the round head design. This hemispherical head, with its soft contours and absence of sharp angles, offers multiple advantages. The most immediate are safety and aesthetics. Once installed, the smooth, rounded protrusion doesn't need to be fully countersunk like a flat head screw, nor does it have the sharp edges of a hex head that can snag on skin or objects. Consequently, it is commonly found in applications where surface touch matters, such as furniture, appliance housings, and children's toys, providing effective clamping force while ensuring user safety.

From a mechanical perspective, the round head typically features a relatively large bearing surface area. When the screw is tightened, this surface evenly distributes pressure onto the fastened material, effectively reducing pressure concentration. This helps prevent indentation or excessive sinking into soft materials like wood or plastic. This "gentle" fastening method makes it a favorite in woodworking and decorative industries.

The Historical Groove: The Legacy and Limitations of the Slotted Drive

The slotted drive on the screw's head is its most historically significant hallmark. It represents the earliest and simplest drive system designed for screws. All it requires is a standard flat-blade screwdriver for tightening or loosening. This minimalist design lowered both manufacturing and user barriers. In times when tools were scarce, almost every household owned a matching screwdriver, making its prevalence unparalleled.

However, the slotted drive comes with inherent limitations. The primary issue is its tendency to cam out and its low torque transmission efficiency. Under high torque, the screwdriver tip can easily slip out of the slot. This not only damages the slot (often called "stripping the screw"), making future removal difficult, but can also mar the workpiece surface. Furthermore, the screwdriver must be perfectly aligned with the slot, and the operator needs to apply significant downward pressure to maintain engagement. This is inefficient in confined spaces or on production lines requiring speed. Due to these drawbacks, in industrial fields prioritizing efficiency and reliability, it has been largely superseded by more advanced drives like the Phillips and hex. Nevertheless, thanks to its classic design and low cost, the slotted drive still firmly holds its place in numerous consumer and low-torque applications.

The Straight Tail: Precision Alignment and Smooth Engagement

A "flat tail" or "plain end" refers to the screw's end being cut into a flat cross-section, creating a stark contrast to the pointed end of a gimlet point (sharp-tipped) screw. This seemingly minor difference dictates vastly different application scenarios.

Plain-end screws usually require a pre-drilled pilot hole in the material. Their tail lacks the ability to tap or drill its own thread; its role is to travel smoothly along this pre-made path. This design offers high positioning accuracy and alignment. In precision instruments, machinery, or structures requiring multiple screws to work in concert, plain-end screws ensure each screw follows its intended path accurately, preventing part misalignment caused by the deviation of a self-centering tip.

Simultaneously, the flat end design allows the threads to engage more fully with the mating part (like a nut or threaded hole) when the screw is fully tightened, leading to a more direct and stable transfer of force. It is often used in through-hole applications or with nuts, making it a typical choice for machine assembly and steel structure connections. In contrast, gimlet point screws excel at "pioneering," capable of directly tapping into thin sheets or soft materials, eliminating the drilling step, but they offer less precision and control.

Overall Synergy and Application Scenarios

Combining the features of a round head, slotted drive, and plain end, we get a fastener with a clear identity: It is suitable for wooden, plastic, or metal sheet structures that require a degree of aesthetics and safety, have low torque requirements, and need precise positioning via pre-drilled holes.

One can envision scenes like these:

• On a rustic wooden chair, it's what secures the seat plate to the armrests.

• On an old-style electrical distribution box, it's used at the hinges of the cover plate.

• In an educational model robot, it might still be the choice for assembling its acrylic shell.

It represents a classic, reliable, and cost-effective solution. While on high-speed automated assembly lines, pneumatic screwdrivers prefer Phillips heads, and in high-strength steel structures, high-strength bolts command more authority, the slotted round head machine screw is like a gentle, seasoned craftsman—quietly playing an irreplaceable role in its niche. It is the启蒙 teacher of mechanical principles, the starting point for countless DIY journeys, and a witness to industrial design's evolution from pure function toward human-machine harmony. In an era obsessed with ultimate efficiency, revisiting and understanding such a fundamental component allows us to appreciate more deeply that the beauty of design often lies hidden within these most humble details.
