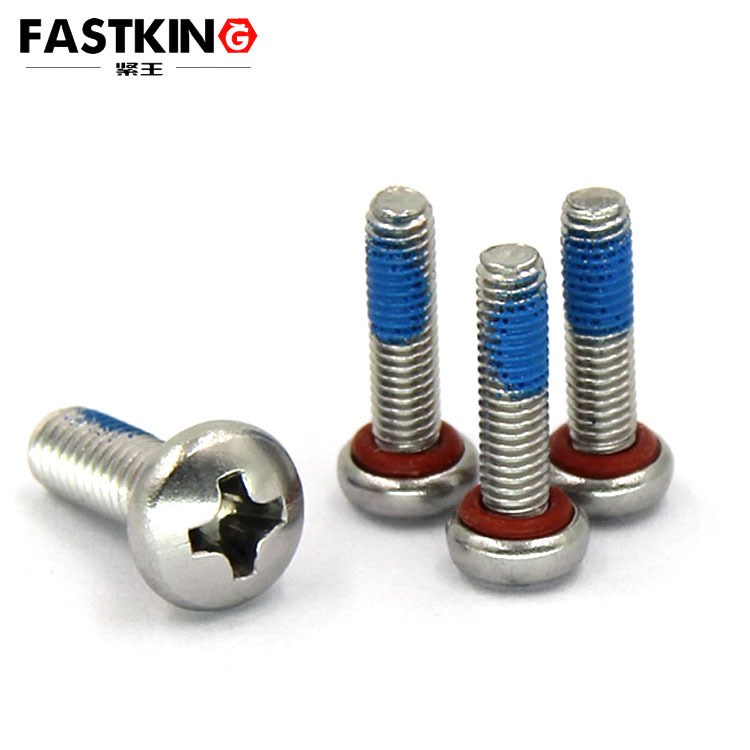

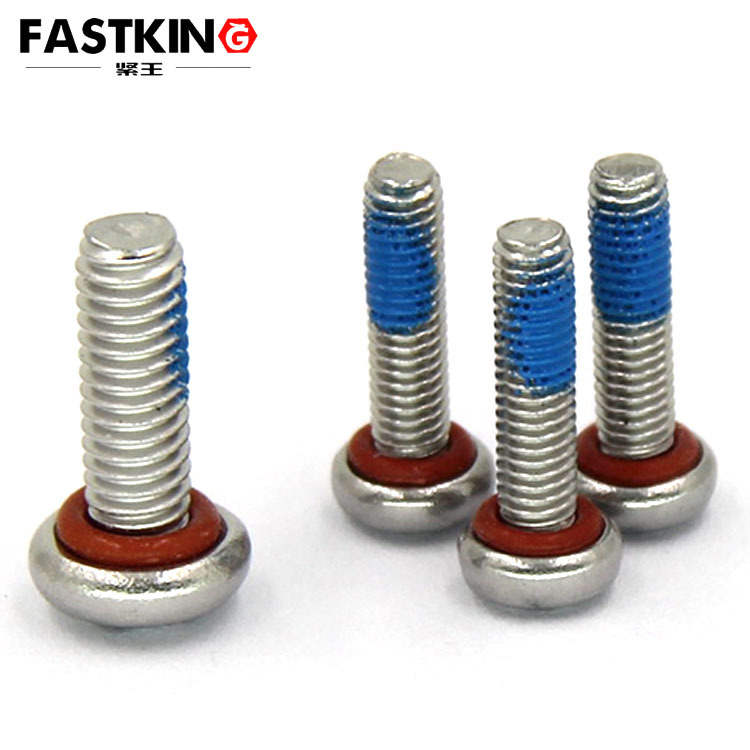

In terms of core design, the "half-circle blue adhesive" is the critical element that enables this machine screw’s waterproof function. The so-called "half-circle blue adhesive" refers to a uniform layer of high-elasticity blue anaerobic waterproof adhesive applied to 1/2 the length of the screw’s threads. Unlike full-circle adhesive coating, the half-circle design preserves smoothness during thread engagement—preventing "jamming" caused by excessively thick adhesive layers—while allowing the adhesive to deform under pressure and fill thread gaps once the screw is tightened.
This blue waterproof adhesive boasts two key properties:
-
Strong Sealing Performance: After curing, the adhesive layer tightly adheres to the sides of the thread teeth, completely blocking moisture and dust from seeping through thread gaps. In IPX7 waterproof testing, components fitted with these screws can be submerged in 1 meter of water for 30 minutes without water penetration.
-
Weather Resistance and Stability: The adhesive layer can withstand temperature fluctuations from -40℃ to 120℃ and does not react with common chemicals such as alcohol or detergents. Even in humid, high-temperature bathroom environments or outdoor conditions with extreme cold and intense sunlight, the adhesive layer will not crack or peel off.
The "pan head Phillips" structural design endows the machine screw with both safety and assembly ease:
-
Pan Head (Rounded Head): Unlike countersunk head screws, the pan head eliminates the need to pre-drill countersinks on the surface of the connected component. This reduces base material processing steps and costs, while the rounded head edges prevent scratches to operators or cables—making it particularly suitable for scenarios with high safety requirements, such as children’s bathroom products and handheld electronic devices.
-
Phillips Slot: As the most universal fastener slot type, the Phillips slot is easily compatible with both manual screwdrivers and electric screwdrivers on automated production lines. Moreover, the torque transmission stability of the Phillips structure is superior to that of slotted designs, minimizing "cam-out" (slippage between the tool and screw head) during tightening. This ensures uniform preload for each screw, further enhancing the sealing effect of the waterproof adhesive. Data shows that in mass assembly scenarios, the assembly efficiency of Phillips slot machine screws is 20% higher than that of Torx socket screws, making them more suitable for large-scale production needs.
As a type of "machine screw," the universal nature of this screw’s specifications lays the groundwork for its broad application. Machine screws typically adopt metric fine or coarse thread designs, with common sizes ranging from M2 to M6. They are compatible with internally threaded holes of corresponding sizes and can be directly screwed into place for fixation without the need for matching nuts, simplifying the assembly process.
Taking the mainstream M3 size as an example: it has a major thread diameter of 3mm and a pitch of 0.5mm, and is compatible with 1-5mm thick metal or plastic sheets. Whether fixing the housing of outdoor cameras, mounting brackets for bathroom mirror cabinets, or interior clips for car door panels, stable connections can be achieved through precise size matching. Additionally, the full-thread design of machine screws (semi-threaded for some short sizes) ensures sufficient engagement with the base material, and when combined with the sealing effect of the waterproof adhesive, forms a dual guarantee of "fastening + waterproofing."
Commercially available waterproof pan head Phillips half-circle blue adhesive machine screws mostly use carbon steel or stainless steel as base materials, striking a balance between cost and corrosion resistance:
-
Carbon Steel (e.g., 1010 Steel): After galvanization or nickel plating, its surface corrosion resistance is enhanced, making it suitable for indoor humid scenarios (such as fixing washing machine control panels).
-
Stainless Steel (primarily 304 stainless steel): Leveraging its composition advantages (18% chromium, 8% nickel), it performs better in outdoor high-salt-fog environments (such as garden lamps and photovoltaic inverters). Its corrosion resistance in neutral salt spray testing can exceed 72 hours, and when paired with the waterproof effect of the blue adhesive, significantly extends the screw’s service life.
The "waterproof + universal" characteristics of this screw enable it to cover multiple fields:
-
Outdoor Electronic Devices: For smart surveillance cameras and outdoor LED displays, screws must resist rain and dew. The sealing effect of the blue adhesive prevents moisture from entering the device and damaging circuit boards, while the pan head Phillips design facilitates on-site debugging and maintenance by installers.
-
Bathroom Appliances: The connection between the housing and inner tank of washing machines, dishwashers, and electric water heaters is exposed to long-term humidity. This screw blocks moisture penetration via the blue adhesive and avoids user scratches through its pan head design.
-
Automotive Components: For wire harness fixation inside car door panels and storage box clips in trunks, screws must withstand condensation and temperature changes in the vehicle. The weather resistance of the blue adhesive ensures long-term stability of the screws, while the Phillips slot is compatible with automated assembly tools on automotive production lines, improving production efficiency.
-
Smart Home: For fixing the base of smart toilet seats and wall-mounted brackets for bathroom mirror cabinets, the screw’s waterproof performance and safety perfectly match the humid bathroom environment, preventing product failures caused by screw rust or water seepage.
-
Pre-Installation Inspection: Ensure the blue adhesive is intact and not peeled off. If the adhesive layer cracks due to improper storage, replace the screw to guarantee waterproof effectiveness.
-
Torque Control: Select the appropriate torque based on the base material (e.g., the recommended torque for M3 stainless steel screws on plastic substrates is 1.5-2.5N·m). Over-tightening may cause base material cracking or adhesive extrusion, while insufficient torque prevents the adhesive from fully filling thread gaps.
-
Environment Adaptation: For long-term immersion or strong acid/alkali environments (such as pool equipment and chemical instruments), it is recommended to use screws made of 316 stainless steel and pair them with additional waterproof gaskets to further enhance protection.
As a fastener that balances waterproof function and universality, the waterproof pan head Phillips half-circle blue adhesive machine screw solves the pain points of traditional machine screws—"weak waterproofing and narrow application scope"—with its "small yet refined" design. With the rapid development of the outdoor electronics and smart home industries, requirements for fastener waterproofing will continue to rise. Relying on its reliable waterproof performance, convenient assembly experience, and wide specification compatibility, this screw is expected to become a "standard fastener" in more fields, safeguarding product quality.
